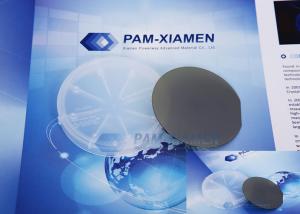

4H Semi-Insulating SiC Wafer With Low TTV/BOW/WARP, Dummy Grade,3”Size

Brand Name : PAM-XIAMEN

Place of Origin : China

MOQ : 1-10,000pcs

Price : By Case

Payment Terms : T/T

Supply Ability : 10,000 wafers/month

Delivery Time : 5-50 working days

name : Semi Insulating SIC Wafer

Description : 4H SEMI Substrate

grade : Dummy Grade

Size : 3”Size

keywords : single crystal SiC wafer

application : electronic industry

Contact Now

4H Semi-Insulating SiC Wafer With Low TV/BOW/WARP, Dummy Grade,3”Size

PAM-XIAMEN provides high quality single crystal SiC (Silicon Carbide)wafer for electronic and optoelectronic industry. SiC wafer is a next generation semiconductor materialwith unique electrical properties and excellent thermal properties for high temperature and high power device application. SiC wafer can be supplied in diameter 2~6 inch, both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available.

Application of Semi-Insulating SiC Dummy Wafer:

SiC Dummy Wafer can use in researches of Thermal and mechanical fields, and the detail application should be as follows:

1. Researches in SiC Thermal conductivity
2.Researches of SiC phonon
3.Resarches in SiC hardness and mechanical properties

Please contact us for more information:

PROPERTIES OF SEMI-INSULATING SILICON CARBIDE MATERIAL

Polytype Single Crystal 4H Single Crystal 6H
Lattice Parameters a=3.076 Å a=3.073 Å
c=10.053 Å c=15.117 Å
Stacking Sequence ABCB ABCACB
Band-gap 3.26 eV 3.03 eV
Density 3.21 · 103 kg/m3 3.21 · 103 kg/m3
Therm. Expansion Coefficient 4-5×10-6/K 4-5×10-6/K
Refraction Index no = 2.719 no = 2.707
ne = 2.777 ne = 2.755
Dielectric Constant 9.6 9.66
Thermal Conductivity 490 W/mK 490 W/mK
Break-Down Electrical Field 2-4 · 108 V/m 2-4 · 108 V/m
Saturation Drift Velocity 2.0 · 105 m/s 2.0 · 105 m/s
Electron Mobility 800 cm2/V·S 400 cm2/V·S
hole Mobility 115 cm2/V·S 90 cm2/V·S
Mohs Hardness ~9 ~9

4H Semi-Insulating SiC Wafer, Dummy Grade,3”Size

SUBSTRATE PROPERTY S4H-51-SI-PWAM-250 S4H-51-SI-PWAM-330 S4H-51-SI-PWAM-430
Description Production Grade 4H SEMI Substrate
Polytype 4H
Diameter (50.8 ± 0.38) mm
Thickness (250 ± 25) μm (330 ± 25) μm (430 ± 25) μm
Resistivity (RT) >1E5 Ω·cm
Surface Roughness < 0.5 nm (Si-face CMP Epi-ready); <1 nm (C- face Optical polish)
FWHM <30 arcsec <50 arcsec
Micropipe Density A+≤1cm-2 A≤10cm-2 B≤30cm-2 C≤50cm-2 D≤100cm-2
Surface Orientation
On axis <0001>± 0.5°
Off axis 3.5° toward <11-20>± 0.5°
Primary flat orientation Parallel {1-100} ± 5°
Primary flat length 16.00 ± 1.70 mm
Secondary flat orientation Si-face:90° cw. from orientation flat ± 5°
C-face:90° ccw. from orientation flat ± 5°
Secondary flat length 8.00 ± 1.70 mm
Surface Finish Single or double face polished
Packaging Single wafer box or multi wafer box
Usable area ≥ 90 %
Edge exclusion 1 mm

sic crystal defects

Most of the defects which were observed in SiC were also observed in other crystalline materials. Like the dislocations, stacking faults (SFs), low angle boundaries (LABs) and twins. Some others appear in materials having the Zing- Blend or the Wurtzite structure, like the IDBs. Micropipes and inclusions from other phases mainly appear in SiC.

Historical Lack of SiC Wafers

Reproducible wafers of reasonable consistency, size, quality, and availability are a prerequisite forcommercial mass production of semiconductor electronics. Many semiconductor materials can be meltedand reproducibly recrystallized into large single crystals with the aid of a seed crystal, such as in theCzochralski method employed in the manufacture of almost all silicon wafers, enabling reasonably largewafers to be mass produced. However, because SiC sublimes instead of melting at reasonably attainablepressures, SiC cannot be grown by conventional melt-growth techniques. Prior to 1980, experimentalSiC electronic devices were confined to small (typically ~14H Semi-Insulating SiC Wafer With Low TTV/BOW/WARP, Dummy Grade,3”Size ), irregularly shaped SiC crystal plateletsgrown as a byproduct of the Acheson process for manufacturing industrial abrasives (e.g., sandpaper) or by the Lely process . In the Lely process, SiC sublimed from polycrystalline SiC powder attemperatures near 2500°C are randomly condensed on the walls of a cavity forming small, hexagonallyshaped platelets. While these small, nonreproducible crystals permitted some basic SiC electronicsresearch, they were clearly not suitable for semiconductor mass production. As such, silicon became thedominant semiconductor fueling the solid-state technology revolution, while interest in SiC-based microelectronicswas limited.
